Accurate weight calculation of aluminum foils is a foundational requirement across aluminum processing, manufacturing, logistics, and procurement.
Whether for cost estimation, production planning, transportation safety, or quality control, an aluminum foil weight calculator provides a standardized and reliable method to convert geometric dimensions into measurable mass.
This article explains why aluminum foil weight calculation matters, clarifies the key dimensional variables, and presents the engineering principles and formula behind the calculation, supported by practical data and industry context.
Why Aluminum Foil Weight Calculation Matters
Aluminum foils are traded, processed, and transported primarily by weight, not by length or area. Inaccurate weight estimation can lead to:
- Cost discrepancies in procurement and sales contracts
- Overloading risks in trucks, containers, or cranes
- Production inefficiencies, such as incorrect line loading or scrap estimation
- Inventory mismatches between theoretical and actual stock
In industries such as construction, automotive, packaging, HVAC, and electronics, even a 1–2% deviation in foil weight can translate into significant financial and operational impacts when volumes reach hundreds or thousands of tons annually.

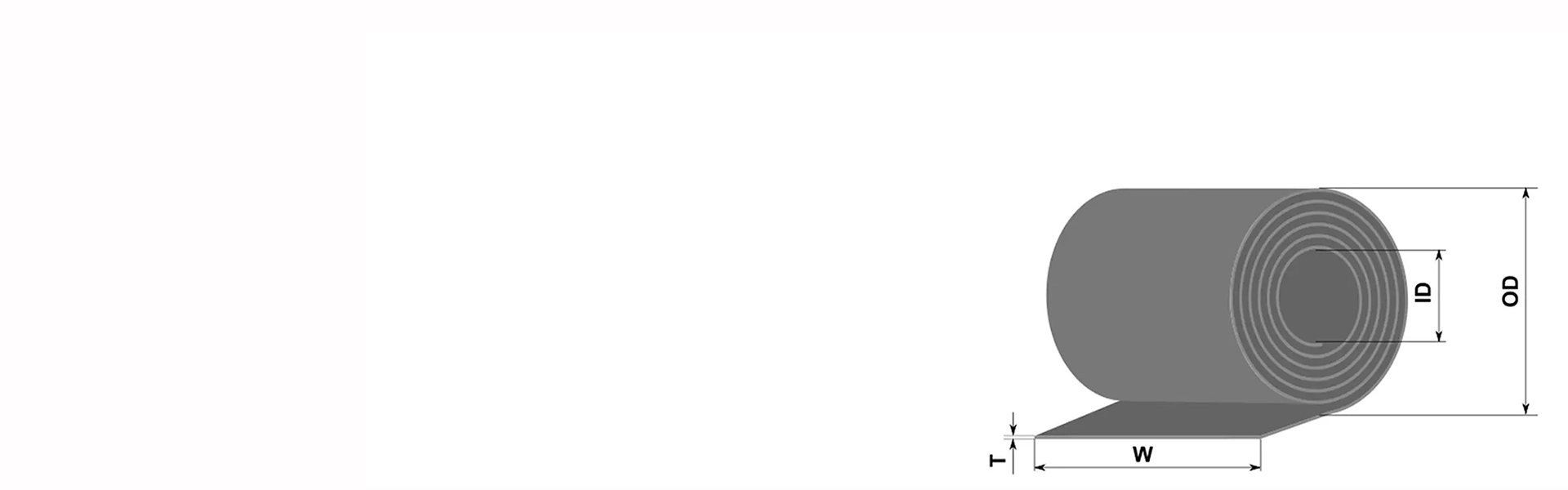

Key Dimensional Variables of Aluminum Foil
Accurate calculation depends on understanding the geometric and material parameters that define a foil.
Inner Diameter (ID)
The inner diameter (ID) refers to the diameter of the foil’s central opening, typically determined by the mandrel size used during foiling. Common industrial IDs include:
- 76 mm
- 152 mm
Outer Diameter (OD)
The outer diameter (OD) is the overall diameter of the fully wound foil. It reflects the total length of aluminum strip wound onto the core. Typical OD values range from:
- 800 mm to 1,600 mm for most industrial foils
Since the formula involves OD², OD accuracy is critical. A 10 mm OD error can result in a weight deviation of several kilograms, depending on width and density.
Aluminum foil Width
The foil width is the axial dimension of the foil and directly scales the total volume. Common widths include:
- Narrow strip: 20–300 mm
- Medium foil: 300–1,000 mm
- Wide foil: up to 2,000 mm
In practice, width tolerances (often ±0.5–1.0 mm) should be considered for high-precision calculations.
Density of Aluminum
The standard density of aluminum is:
- 2.65 – 2.85 g/cm³
However, density can vary slightly depending on alloy composition:
| Alloy Series | Grades | Typical Density (kg/m³) | Density (g/cm³) |
|---|---|---|---|
| 1xxx | 1050, 1060, 1070, 1100, 1235 | ~2,705 | ~2.705 |
| 3xxx | 3003, 3004, 3105 | ~2,720 – 2,740 | 2.72 – 2.74 |
| 5xxx | 5052 | ~2,660 – 2,680 | 2.66 – 2.68 |
| 8xxx | 8006, 8011, 8021, 8079 | ~2,700 – 2,710 | 2.70 – 2.71 |
For most commercial calculations, 2,700 kg/m³ is accepted as a reliable standard unless high-precision mass accounting is required.
Principles of Aluminum Foil Weight Calculation
Engineering Basis
An aluminum foil can be modeled geometrically as a hollow cylinder.
The weight is determined by calculating the volume of this hollow cylinder and multiplying it by the material density.
The volume is the difference between the volumes defined by the outer and inner diameters.
Standard Calculation Formula
Aluminum foil Weight Formula:
Weight=π×(OD2−ID2)/4×Width×Density
Where:
- OD = Outer diameter
- ID = Inner diameter
- Width = Foil width
- Density = Aluminum density
- All dimensions must be in consistent units
Conclusion
An aluminum foil weight calculator is not merely a mathematical tool—it is a critical decision-making instrument across engineering, manufacturing, logistics, and procurement.
By understanding the key dimensional variables and applying the correct geometric principles, stakeholders can achieve reliable weight estimates, reduce operational risk, and improve cost control.
As aluminum applications continue to expand and supply chains become more data-driven, accurate and standardized foil weight calculation will remain essential for efficient and transparent industrial operations.
